A Comprehensive Explanation of Ferrofluid seal's Structure and Principles! The Importance of Custom Design

Understand the basics before customizing! A thorough explanation of Ferrofluid seal's structure and principles.

Before introducing Ferrofluid seal, it's essential to understand its structure and working principles. This article will explain:
• The basic structure and principles of Ferrofluid seal
• The working principle of Ferrofluid seal
• The importance of custom design
Let's explore the basics of Ferrofluid seal.

Basic Structure and Principles of Ferrofluid seal

Ferrofluid seal is a sealing element used in rotating components to prevent gas leakage. Its most significant feature is the use of a special liquid known as "magnetic fluid," which enables non-contact sealing. Compared to traditional sealing methods, Ferrofluid seal produces no friction, has no vaporization, and boasts a long service life.

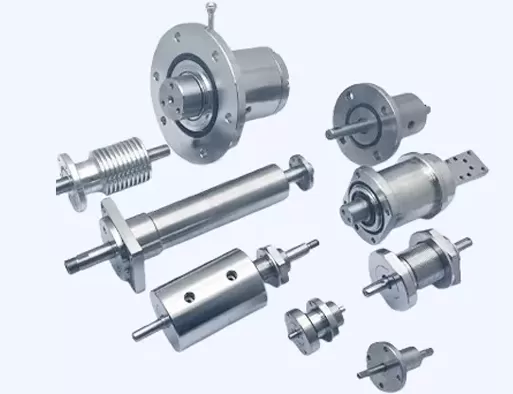

What is Ferrofluid seal? Key Characteristics
Ferrofluid seal is used as a sealing element in rotating machinery. By utilizing magnetic forces, it fixes magnetic liquid to create a seal.
Unlike conventional seals that generate friction due to contact with rotating parts, Ferrofluid seal avoids this issue by using magnetic liquid for non-contact sealing, which prevents friction and wear, making it ideal for long-life, high-vacuum, and clean environments.

Specifically, ferrofluid is injected into a magnetic circuit composed of magnets, magnetic poles, and a rotating shaft, where it is fixed between the poles and the shaft, forming a ring-like seal. This seal effectively prevents gas leakage in vacuum or high-purity environments and is used in high-speed rotating components. Ferrofluid seal is widely used in semiconductor equipment, solar equipment, LCD panel equipment, medical devices, and space exploration fields.

Working Principle of Ferrofluid seal

Ferrofluid seal uses the magnetic properties of magnetic liquid to achieve sealing. The magnetic fluid, composed of nano-sized magnetic particles, is attracted and fixed by the magnetic field.
The working principle is as follows:
• Magnetic Field Formation: Magnets and poles form a strong magnetic field.
• Ferrofluid Retention: The magnetic field attracts and retains the ferrofluid between the shaft and the poles.
• Sealing Function: The fluid is securely fixed, preventing leakage even under pressure differences, achieving sealing.
Ferrofluid seal's non-contact seal means no friction, wear, or heat generation, providing long-lasting sealing even in high-speed rotations.

Operating Principle of Ferrofluid

Ferrofluid sealing achieves reliable sealing performance by utilizing the magnetic properties of magnetic fluid. The magnetic fluid contains nanoscale magnetic particles that respond to an applied magnetic field. When placed within a magnetic field generated by permanent magnets and pole pieces, the magnetic fluid functions as a liquid O-ring.

The operating principle is summarized as follows:

· Magnetic field formation
A strong magnetic field is generated by the permanent magnets, pole pieces, and the rotating shaft, forming a closed magnetic circuit.

· Magnetic fluid retention
The magnetic field attracts and firmly retains the magnetic fluid within the narrow clearance between the rotating shaft and the pole pieces.

· Sealing performance
The magnetic fluid is securely held by the magnetic field and does not leak even under differential pressure conditions, thereby achieving a stable and reliable seal.

Because ferrofluid sealing is a non-contact sealing method, it generates no friction or wear, resulting in long service life. It is well suited for high-vacuum applications and maintains stable sealing performance even under high rotational speeds.

Importance of Custom Design

Ferrofluid seals should be custom-designed according to specific customer requirements, as performance demands vary depending on application and operating environment. For example, high-speed rotation requires higher pressure resistance than standard designs, while high-temperature environments require heat-resistant materials.

Custom design typically considers the following key factors:

· Load conditions
Radial load, axial load, eccentric load, and transmitted torque

· Magnetic fluid selection
Compatibility with corrosive gases, required vacuum level, and temperature characteristics

· Operating environment
Temperature, pressure, vacuum level, and process gases

· Rotational speed
High-speed or low-speed operation

· Pressure resistance
Positive pressure, negative pressure, and differential pressure

· Dimensions
Shaft diameter, flange diameter, housing length, and total shaft length

Through custom design, the most suitable ferrofluid solution can be provided for each customer’s equipment. Moretec offers customized ferrofluid solutions, and customers are encouraged to contact us if they are unsure which model best meets their requirements.

For Ferrofluid Consultation, Contact Moretec

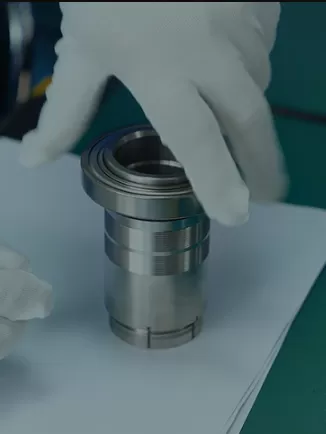

Ferrofluid is a specialized product that requires advanced technology and precision engineering. Moretec maintains a fully integrated system covering service life calculation, design, manufacturing, and sales, enabling the stable supply of high-quality ferrofluid products. Customized designs can be provided to meet a wide range of application requirements.

When introducing ferrofluid solutions, customers may encounter the following challenges:

Moretec is committed to providing optimal solutions and supporting customers in resolving technical challenges. Our experienced engineers and technical staff deliver professional and reliable support.
