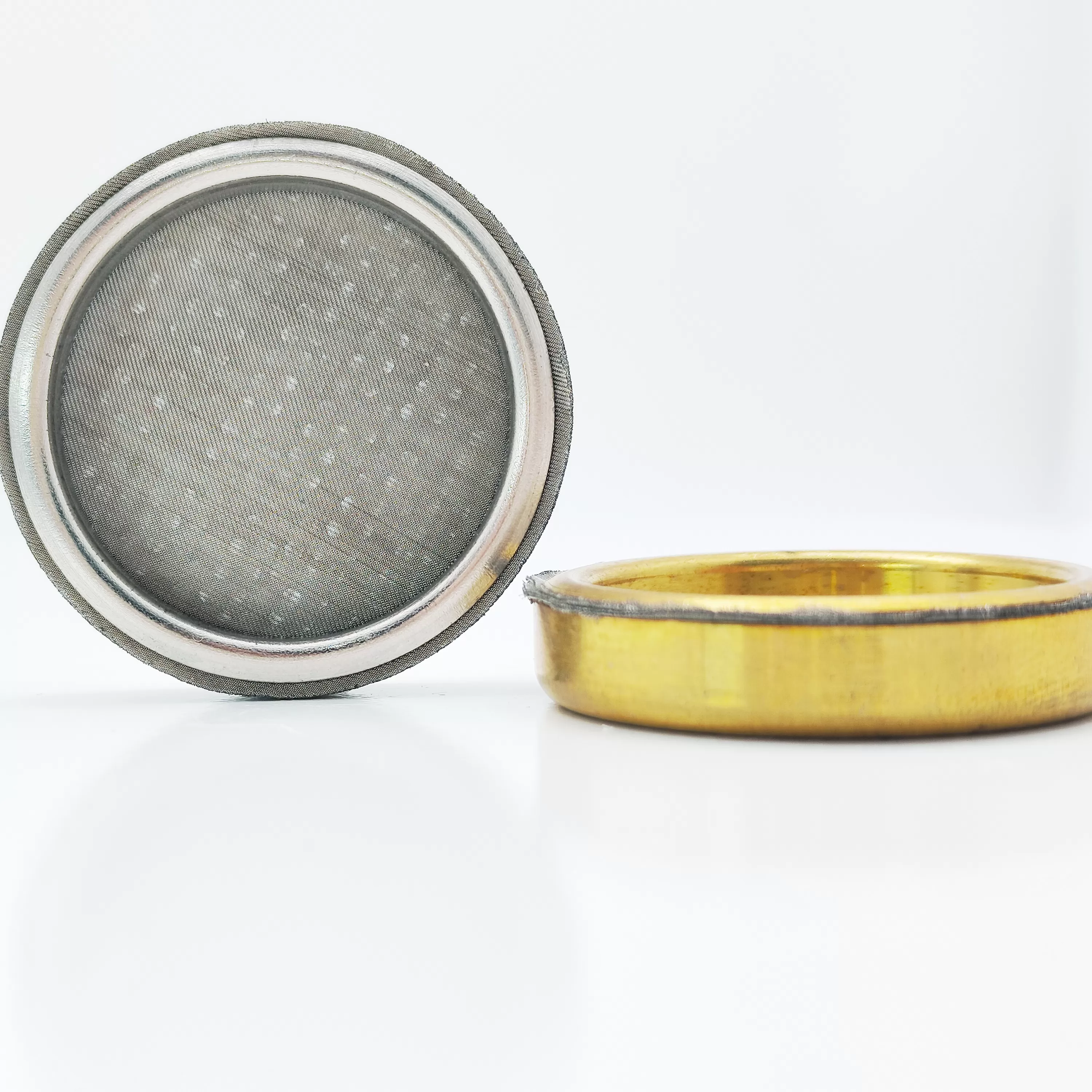

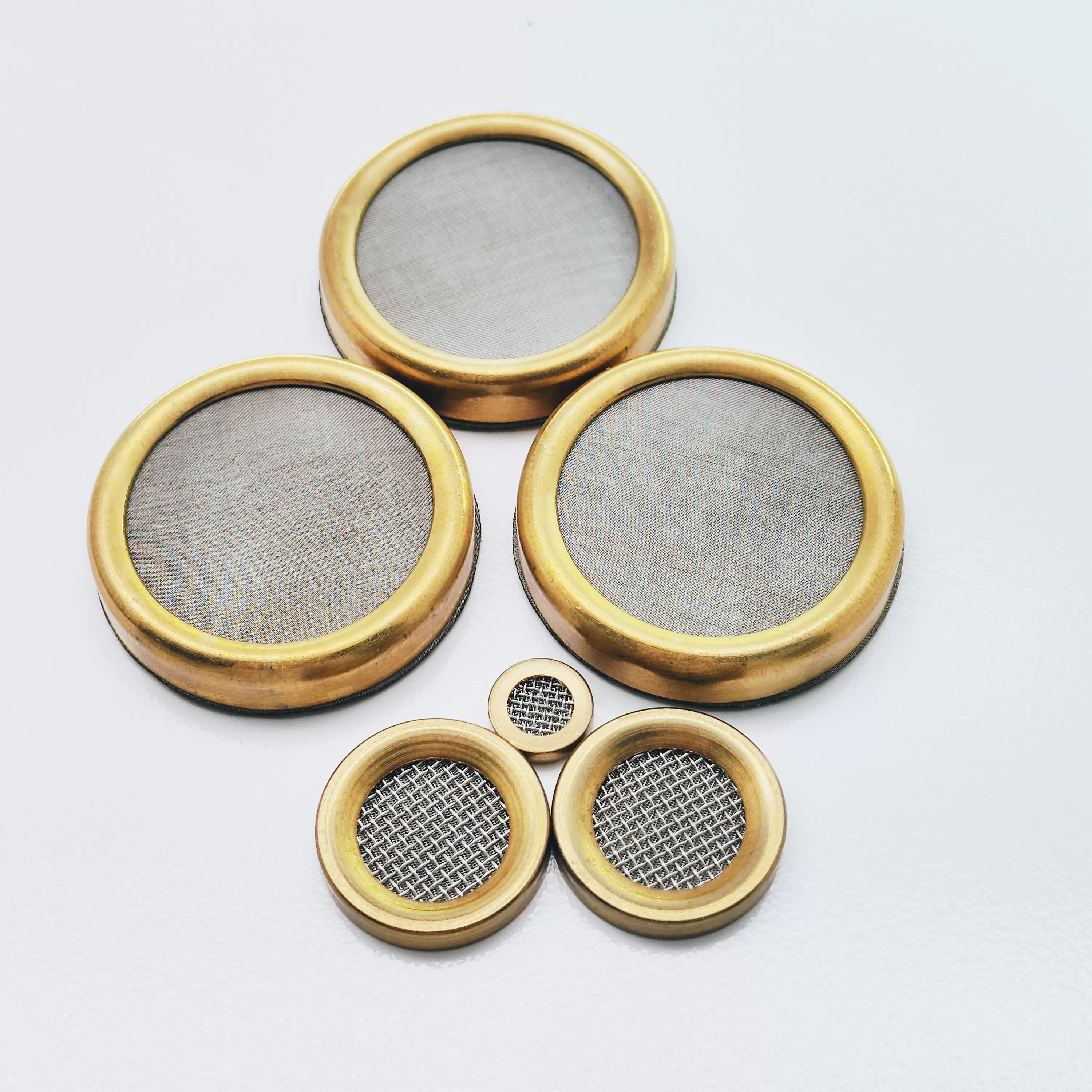

Rim Material: Copper or stainless steel
Filter Medium: Multi-layer mesh including plain weave, twill weave, and sintered mesh
Micron Rating: 2–200μm (configurable in layered combinations)
Layer Options: Single-layer or multi-layer
Size: Customizable to fit spin pack specifications
Excellent resistance to corrosion, heat, pressure, and abrasion
Consistent filtration for 2–200μm particles
Washable and reusable for long-term cost efficiency
Uniform pore distribution ensures high precision
High flow capacity with minimal resistance
Suitable for both low and high temperature environments
Easy installation, standard dimensions, system compatibility
Polymer melt filtration (e.g., PET, PP, PA)
Synthetic and artificial fiber spinning systems
High-temperature viscous fluid filtration in petrochemical plants
Lubricating oil filtration for marine and heavy-duty equipment
Circulating oil systems and high-viscosity fluid handling
Clean filtration applications in food, pharmaceutical, machinery, and automotive industries

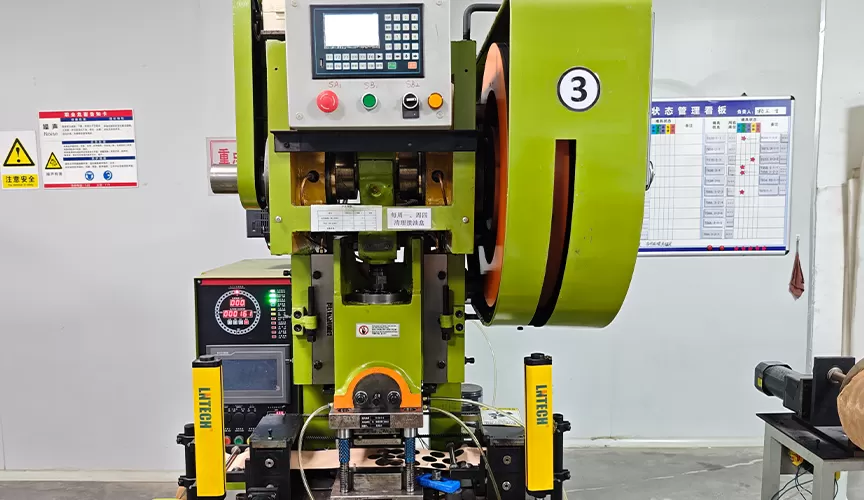

The stamped out mesh usually has good surface finish and flatness, ellipticity. The equipment from Moretec is equipped with automatic feeding and receiving functions, which not only reduces manual intervention, but also improves the stability of product quality.

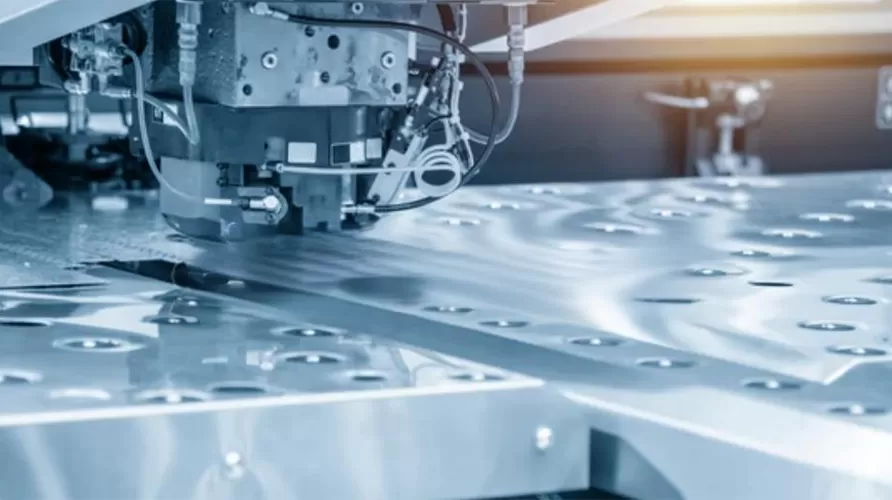

The wrapped filter is processed at a high temperature of 300°C, which removes the stress from the material and prevents the wrapped edge from deformation, cracking and wrinkling in the process of CNC machining and stamping.
The use of Japanese Mazak for the cutting process of the wrapping shell ensures the precision and stability of the product size.

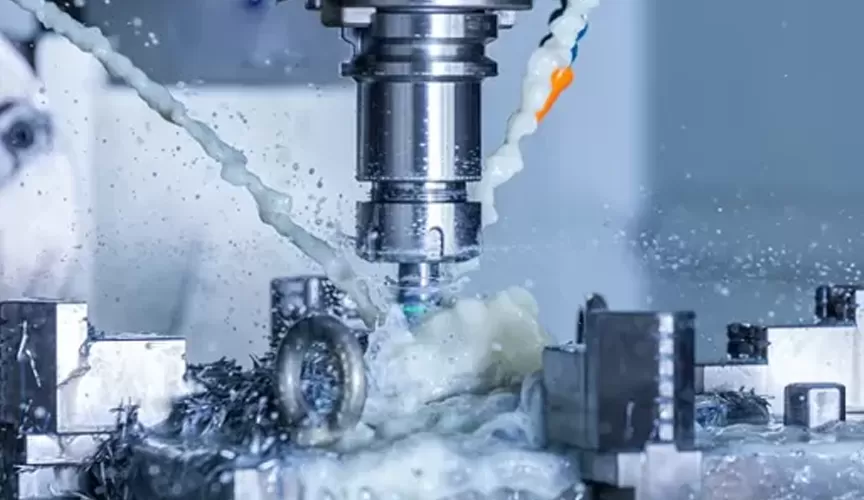

Assemble each process and put it into the final process for stamping and molding.
Stamping mold clearance is guaranteed at 2.55mm to ensure qualified filter thickness.
Whether wrinkles, whether the appearance of indentation
It can quickly identify material grades and clearly display grade element information on the screen, thus accelerating metal detection and effectively completing applications such as metal manufacturing and precious metal analysis.

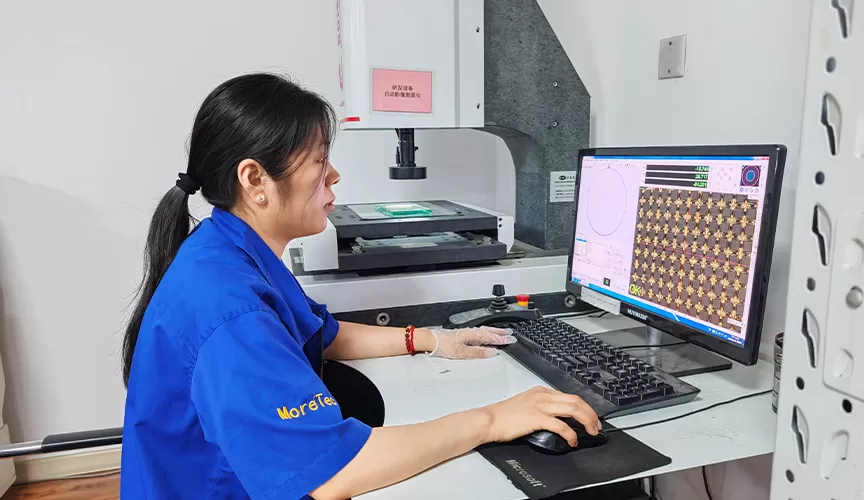

capable of providing high-precision measurement results and displaying them intuitively in digital form for easy reading and recording, facilitating follow-up analysis and report generation.

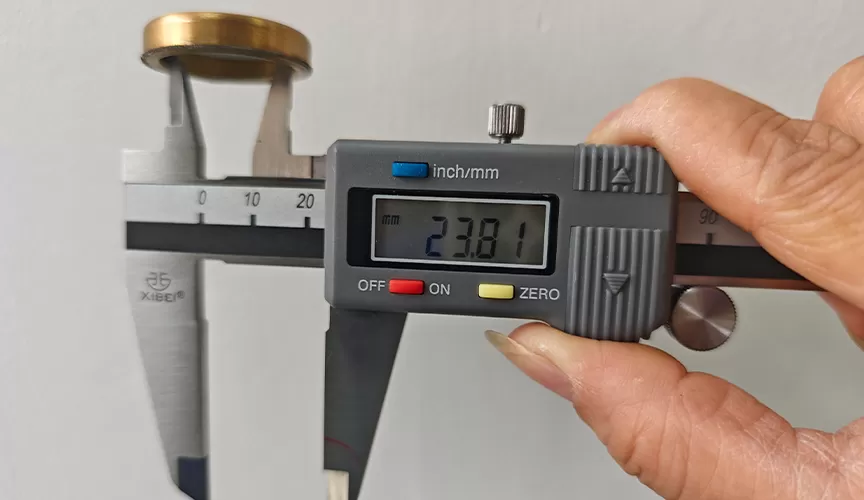

In accordance with the drawings, the dimensions of each product are inspected and recorded.
