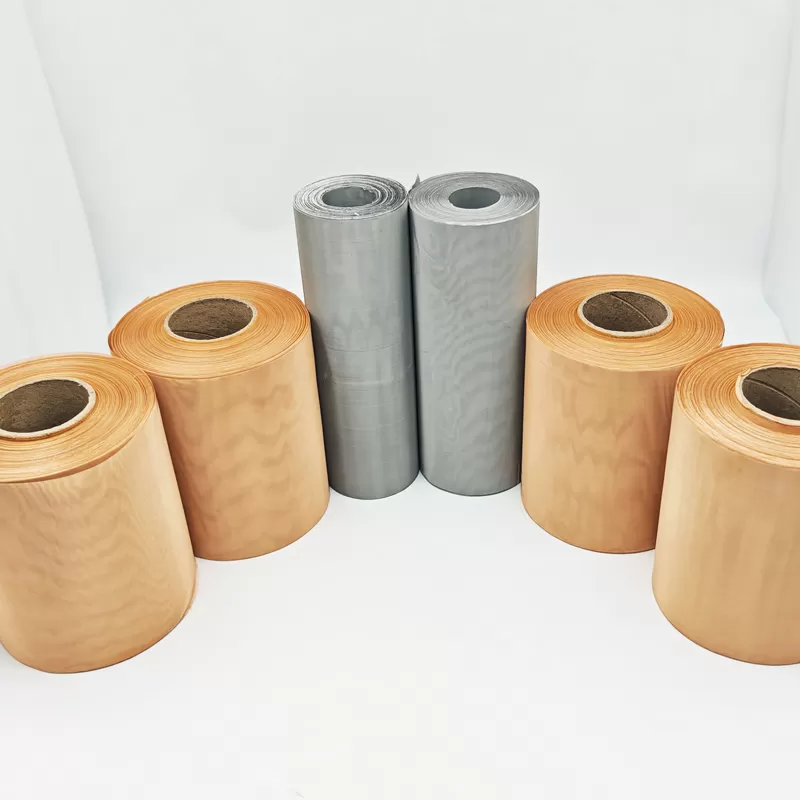

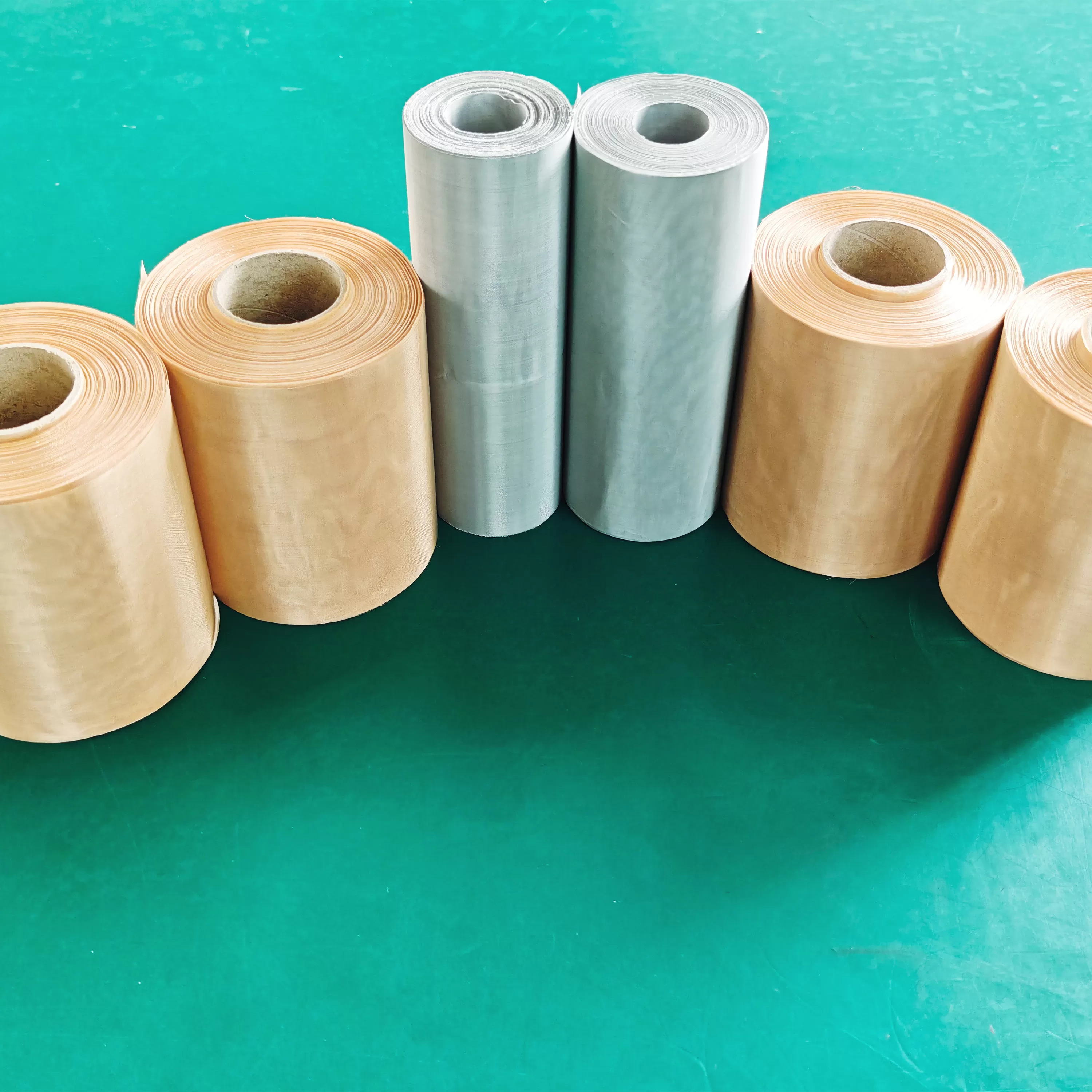

High Precision Control: Manufactured using imported and customized CNC weaving machines to ensure uniform mesh openings, excellent flatness, and precise weight control.
Multiple Material Options: Available in stainless steel, phosphor bronze, and other materials to suit various application environments.
Excellent Workability: Good ductility and compatibility with laser cutting, plasma processing, stamping, and other fabrication techniques.
Excellent Corrosion Resistance: Stainless steel shows strong stability in acidic and alkaline environments, suitable for outdoor and chemical industry use.
High Strength and Durability: High tensile strength and sturdy structure ensure long-lasting performance.
Good High-Temperature Resistance: Suitable for filtration and support systems in high-temperature environments.
Easy to Clean and Maintain: Smooth surface resists dirt adhesion, facilitating daily maintenance.
Excellent Electrical Conductivity: Copper’s high conductivity makes it widely used in electronics and conductive shielding applications.
Good Thermal Conductivity: High heat transfer efficiency is suitable for thermal conduction and heat dissipation designs.
Outstanding Corrosion Resistance: Stable performance in various chemical environments extends service life.
Strong Flexibility and Plasticity: Good adaptability for processing, suitable for complex forming processes.
Long Service Life: Stable material properties ensure reliable performance under various working conditions.
Superior Antibacterial Properties: Natural antibacterial characteristics support applications with high hygiene requirements.
Cryogenic Engineering: Core material for cryogenic insulation structures, such as Mesh for Cryo.
New Energy Sector: Used in electrode support meshes, fuel cell separators, and hydrogen storage system structures.
Precision Filtration: Base material for gas and liquid filtration elements.
Automotive & Rail Transit: Used in exhaust system mesh covers and structural support components.
Aerospace: Applied in aerospace filters and acoustic damping structural materials.
Moretec is equipped with advanced weaving lines and comprehensive testing facilities to ensure consistent high-quality mesh roll production. Our key inspection equipment includes:
X-ray Spectrometer
Infrared Carbon-Sulfur Analyzer
Metallographic Microscope
Electronic Tensile Testing Machine
Microhardness Tester
In addition, a radioactive material detector is employed to rigorously screen raw materials, ensuring product safety and compliance for sensitive applications such as cryogenics and aerospace.
| Mesh | Wire Dia. (MM) | Opening (mm) | ||
| swg | mm | inch | ||
| 6mesh | 22 | 0.711 | 0.028 | 3.522 |
| 8mesh | 23 | 0.61 | 0.024 | 2.565 |
| 10mesh | 25 | 0.508 | 0.02 | 2.032 |
| 12mesh | 26 | 0.457 | 0.018 | 1.66 |
| 14mesh | 27 | 0.417 | 0.016 | 1.397 |
| 16mesh | 29 | 0.345 | 0.014 | 1.243 |
| 18mesh | 30 | 0.315 | 0.012 | 1.096 |
| 20mesh | 30 | 0.315 | 0.0124 | 0.955 |
| 22mesh | 30 | 0.315 | 0.0124 | 0.84 |
| 24mesh | 30 | 0.315 | 0.0124 | 0.743 |
| 26mesh | 31 | 0.295 | 0.0116 | 0.682 |
| 28mesh | 31 | 0.295 | 0.0116 | 0.612 |
| 30mesh | 32 | 0.247 | 0.011 | 0.573 |
| 32mesh | 33 | 0.254 | 0.01 | 0.54 |
| 34mesh | 34 | 0.234 | 0.0092 | 0.513 |
| 36mesh | 34 | 0.234 | 0.0092 | 0.472 |
| 38mesh | 35 | 0.213 | 0.0084 | 0.455 |
| 40mesh | 36 | 0.193 | 0.0076 | 0.442 |
| 42mesh | 36 | 0.193 | 0.0076 | 0.412 |
| 44mesh | 37 | 0.173 | 0.0068 | 0.404 |
| 46mesh | 37 | 0.173 | 0.0068 | 0.379 |
| 48mesh | 37 | 0.173 | 0.0068 | 0.356 |
| 50mesh | 37 | 0.173 | 0.0068 | 0.335 |
| 60X50mesh | 36 | 0.193 | 0.0076 | - |
| 60X50mesh | 37 | 0.173 | 0.0068 | - |
| 60mesh | 37 | 0.173 | 0.0068 | 0.25 |
| 70mesh | 39 | 0.132 | 0.0052 | 0.231 |
| 80mesh | 40 | 0.122 | 0.0048 | 0.196 |
| 90mesh | 41 | 0.112 | 0.0044 | 0.17 |
| 100mesh | 42 | 0.012 | 0.004 | 0.152 |
| 120X108mesh | 43 | 0.091 | 0.0036 | - |
| 120mesh | 44 | 0.081 | 0.0032 | 0.131 |
| 140mesh | 46 | 0.061 | 0.0024 | 0.12 |
| 150mesh | 46 | 0.061 | 0.0024 | 0.108 |
| 160mesh | 46 | 0.061 | 0.0024 | 0.098 |
| 180mesh | 47 | 0.051 | 0.002 | 0.09 |
| 200mesh | 47 | 0.051 | 0.002 | 0.076 |

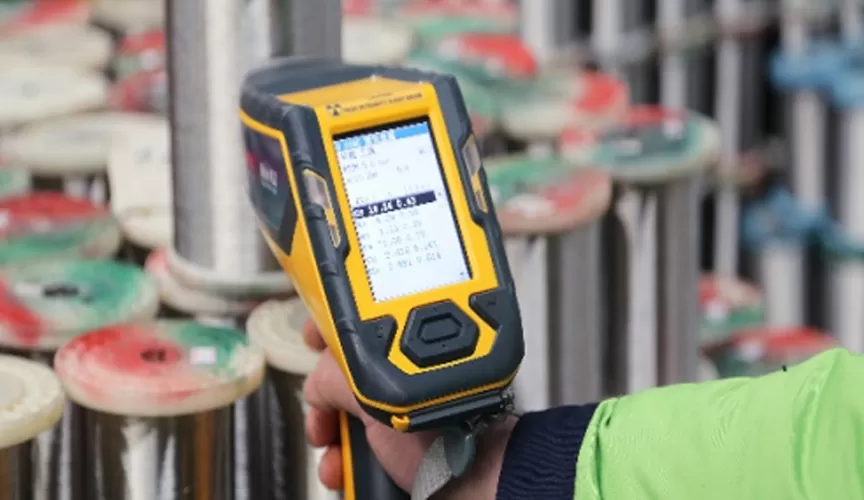

It can quickly identify wire alloy grades and clearly display grade element information on the screen, thus accelerating metal detection and effectively completing applications such as metal manufacturing and precious metal analysis.

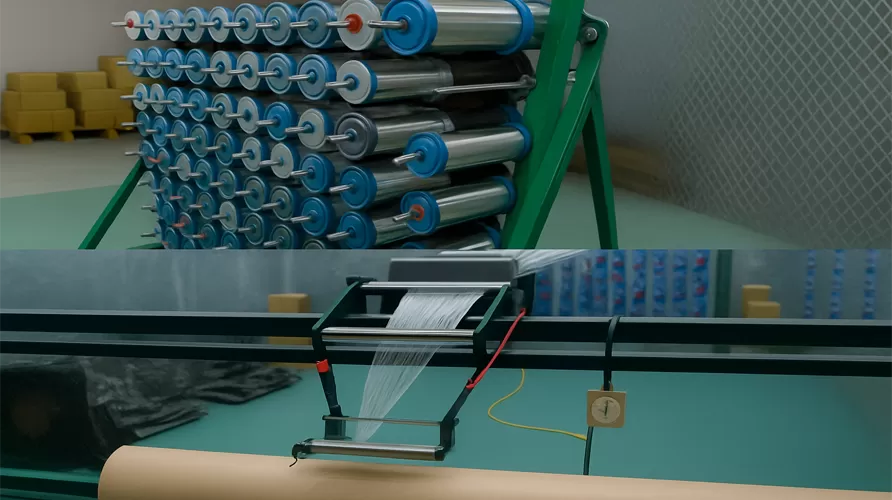

The warp yarn, which is drawn out from the cylinder on the cylinder frame, first passes through the gap between the yarn gripper and the column through the head-breaking detector, then passes forward through the yarn-guiding ceramic plate, then through the yarn-guiding rod, through the telescopic reed, and then winds around the length-measuring rollers and then winds up on the warp beam. This improves the production efficiency, product quality, automation and flexibility.

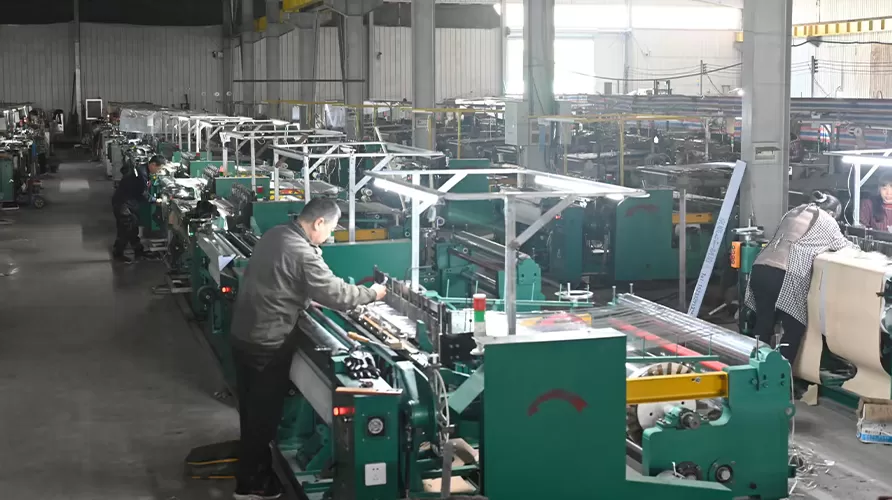

in this assembly process, the silk screen through the longitudinal piece and the steel buckle with the very critical, any small error will affect the stability and performance of the entire structure.

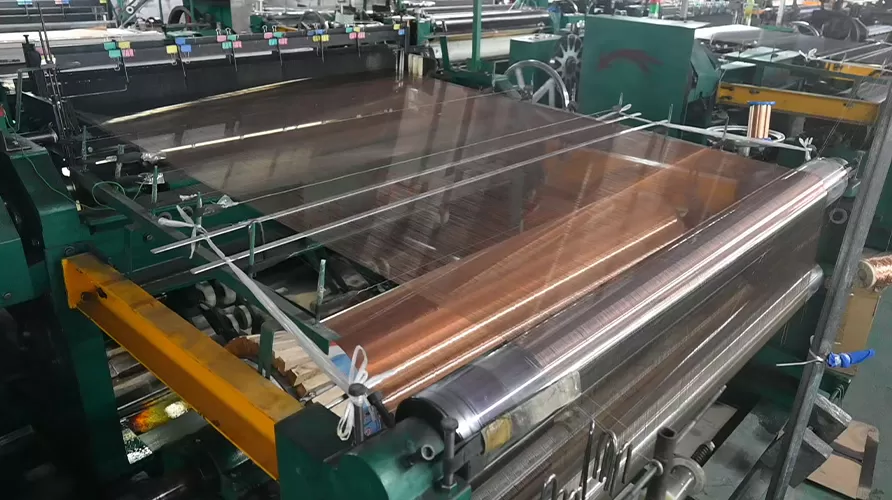

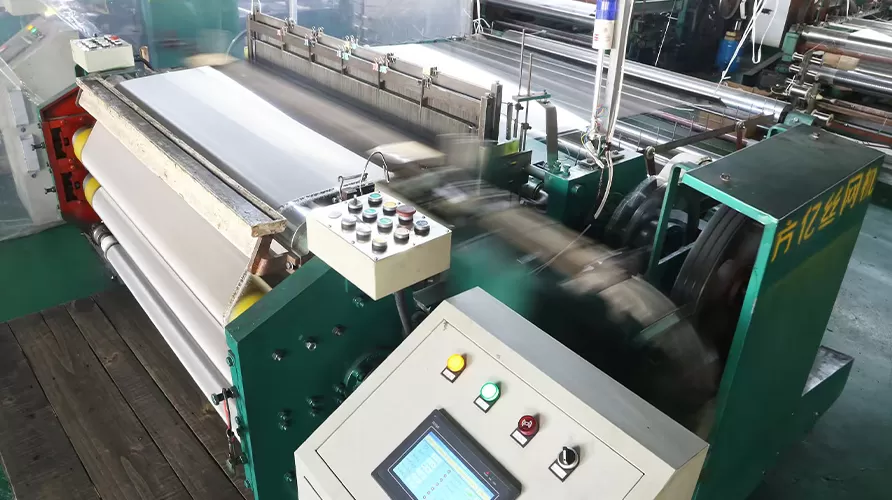

Weaving square hole mesh 40-400 meshes, wire diameter range: 0.17-0.3mm, mesh width 1000mm-1300mm, the equipment running process is smooth and reliable, the production process tension numerical display, you can set the upper and lower values of tension, abnormalities will automatically stop the alarm, the precision of the produced mesh to meet the corresponding technical requirements of the mesh.
mainly used to ensure the flatness, tension uniformity and dimensional accuracy of the wire mesh, to achieve higher quality standards in subsequent processing or use.
according to customer requirements using high-precision automatic cutting machine to accurately cut the mesh material into a number of neat mesh strips, mesh precision of ± 0.5mm
1, using LANTA spectrometer for material testing
2, Use thickness micrometer to measure the wire diameter of the wire material, wire diameter precision error ± 0.002mm

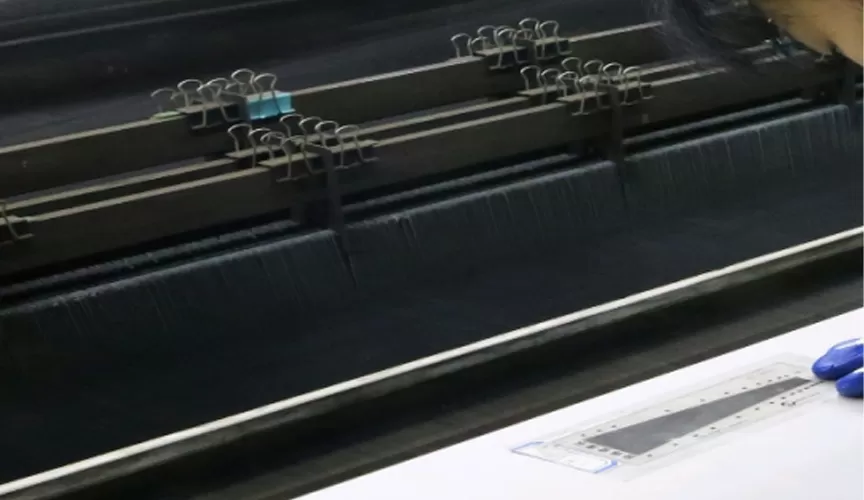

Set the mesh and tension values, abnormal equipment automatic alarm shutdown, in order to check the accuracy of the equipment, the operator will regularly use the mesh card for manual checking to ensure product quality.

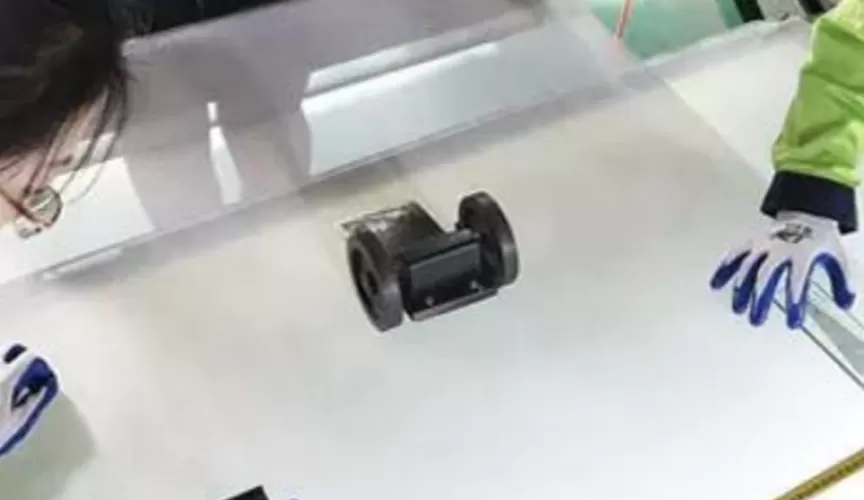

The net material placed on one end of the glass inspection table, placed above the meter meter, the net material will be inspected, the other end of the air expansion shaft through the paper tube will be the edge of the net material yards to record the actual number of meters. If there is any unqualified netting in the inspection process, we will cut it off and make inspection records in time for later traceability.
capable of providing high-precision measurement results and displaying them intuitively in digital form for easy reading and recording, facilitating follow-up analysis and report generation.
