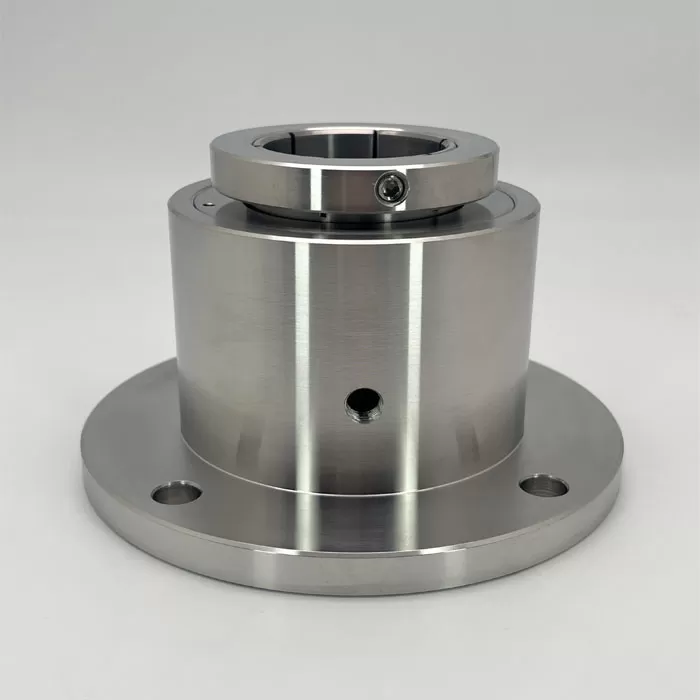

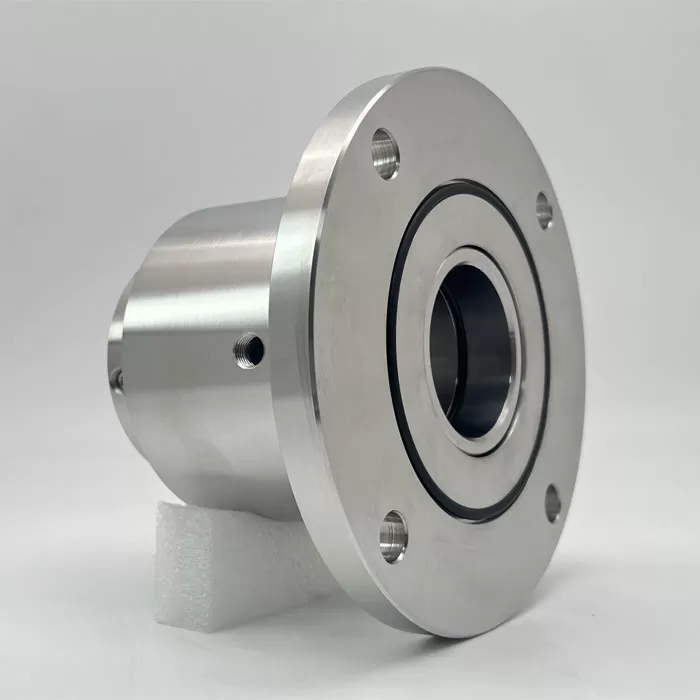

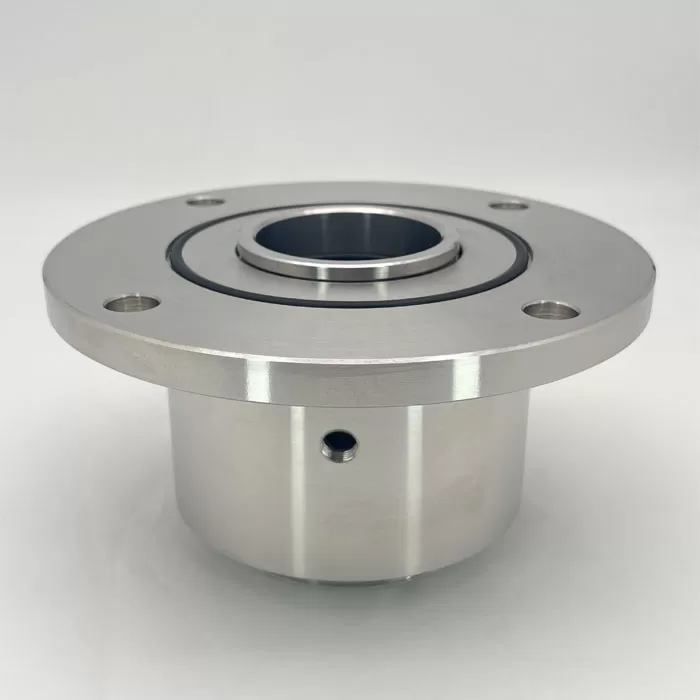

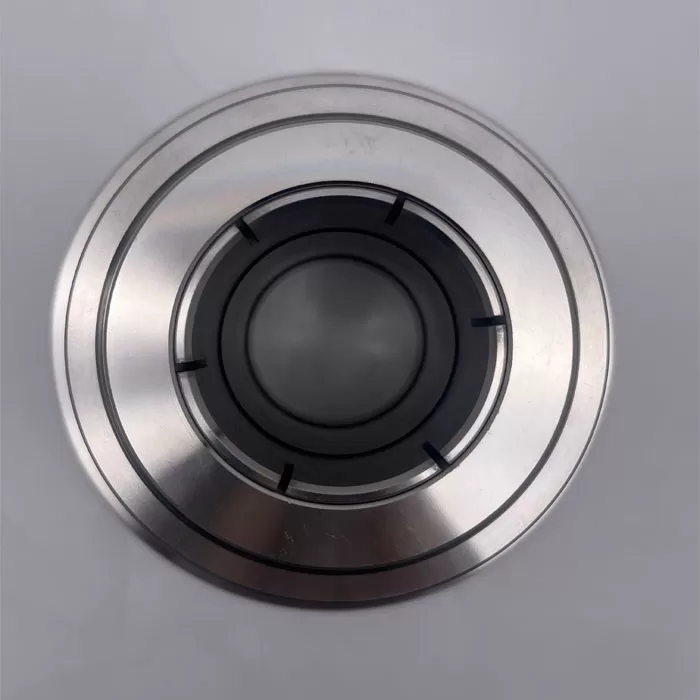

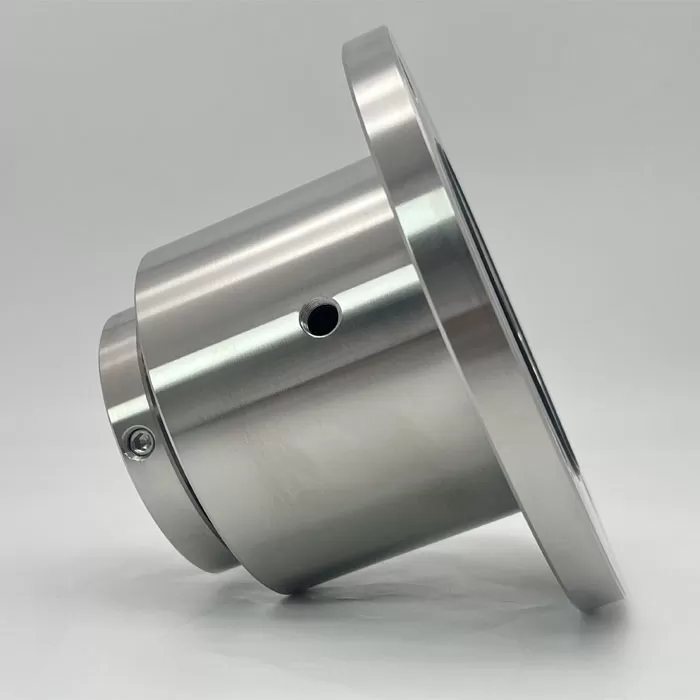

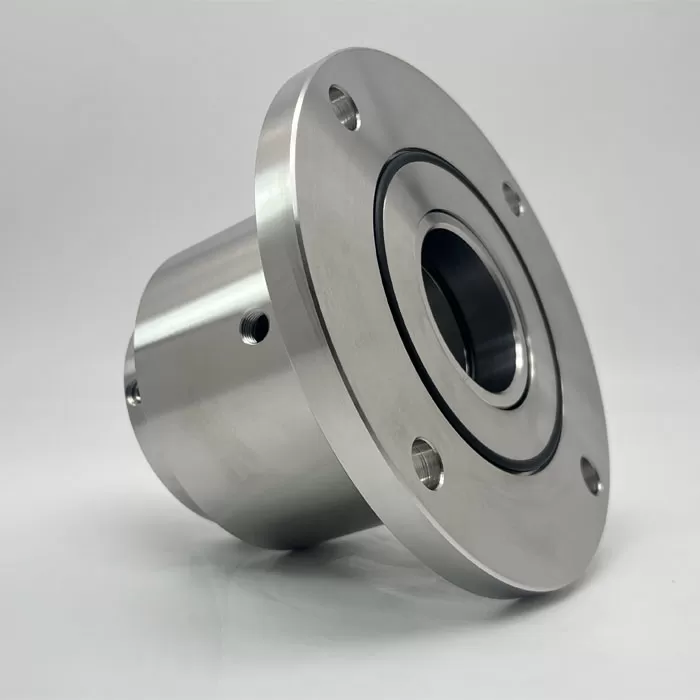

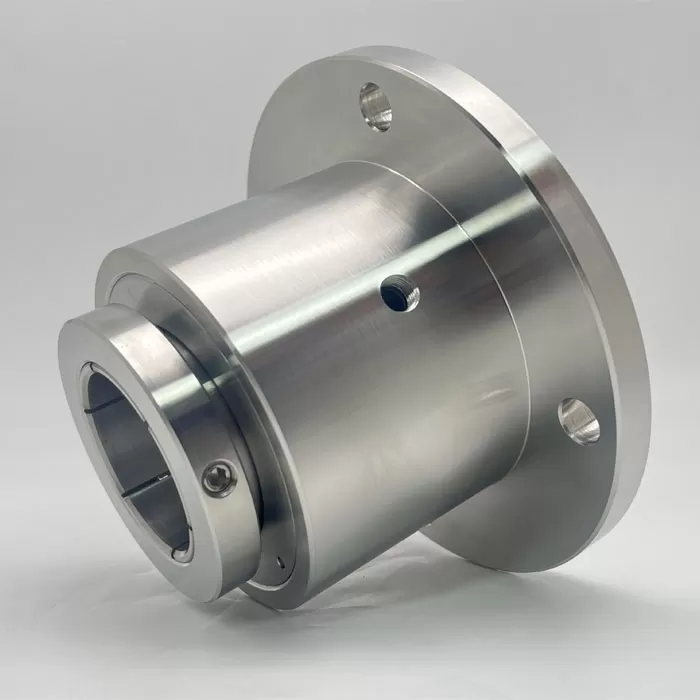

The IHFB2000MNC01 (part number IHFB2000MNC01) is a vacuum rotary feedthrough from Moretec's Hollow Shaft Compliant Mounted Feedthrougths series. It utilizes Moretec’s standard ferrofluid, which is specifically designed for providing rotary motion and a magnetic liquid seal in a variety of standard environments.

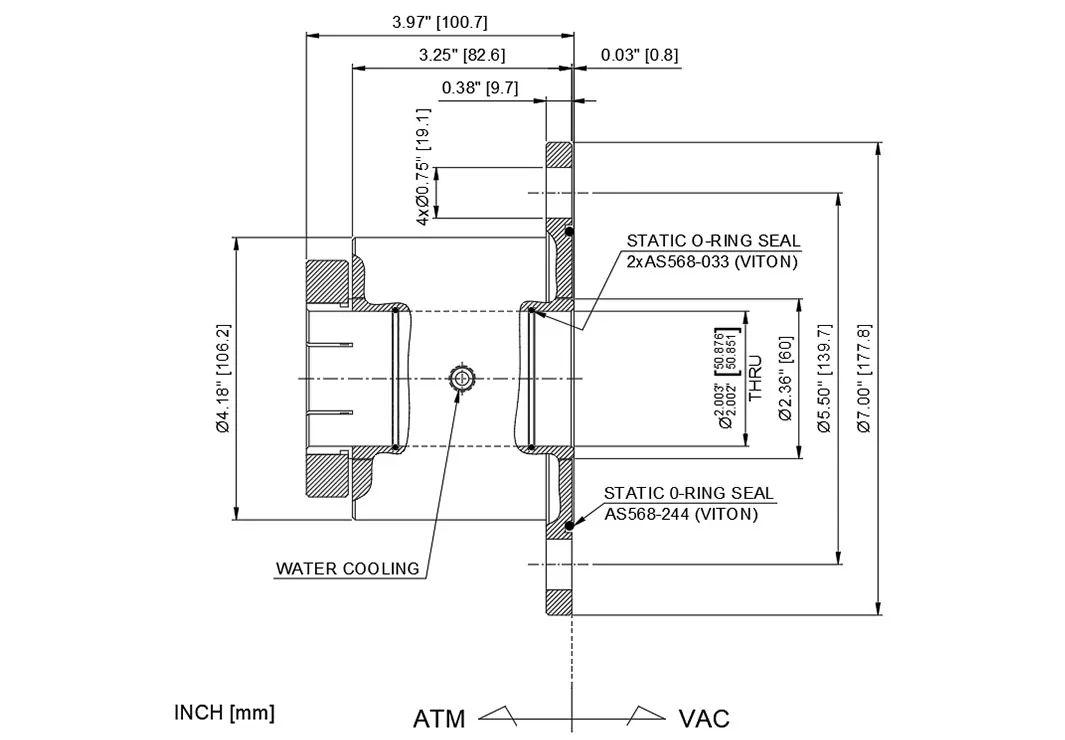

This feedthrough model features a hollow shaft design with a flange for mounting. Additionally, this vacuum seal incorporates water cooling to support high-temperature applications. Detailed dimensions are provided below.
