How to Select and Validate Ferrofluid for Loudspeaker Applications

Selecting ferrofluid for a loudspeaker requires more than comparing viscosity or saturation magnetization. The formulation, dosage, magnetic-gap geometry, and actual driver operating conditions must be evaluated together.

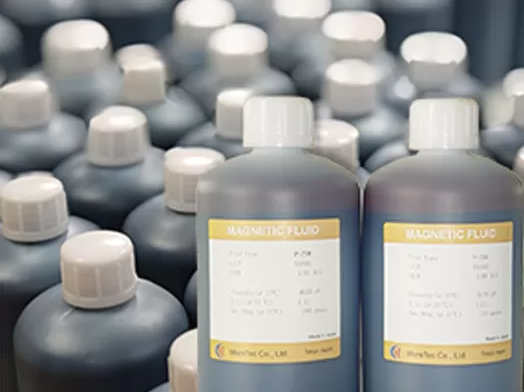

Loudspeaker ferrofluid, also referred to as audio ferrofluid, in a magnetic gap can contribute to heat transfer, damping, and voice-coil stabilization. Its performance depends on the carrier fluid, magnetic-particle system, viscosity, saturation magnetization, dosage, gap geometry, and the loudspeaker’s thermal history.

A change in frequency response or sensitivity is not enough to diagnose ferrofluid aging. The suspension, diaphragm, adhesive, voice coil, magnetic circuit, ferrofluid distribution, and possible contamination should be evaluated as part of the complete transducer.

What Can Change During Service

Heat, time, oxygen exposure, contaminants, and repeated high excursion can alter the ferrofluid’s properties or its distribution within the magnetic gap.

Carrier-fluid loss may increase the effective viscosity of the remaining ferrofluid, while migration may change the quantity and distribution of ferrofluid within the magnetic gap.

Foreign particles can increase friction, while an incorrect initial dosage can create excessive damping from the beginning.

Repeated thermal cycling may also affect nearby adhesives, suspension components, and voice-coil geometry, producing symptoms similar to ferrofluid degradation.

OEM qualification of loudspeaker ferrofluid should use the actual magnetic gap, driver materials, dosage process, and power cycle.

A laboratory fluid-property value alone cannot guarantee the performance of the finished loudspeaker driver.

Use Measurements to Separate Possible Causes

Compare the affected driver with a qualified reference driver and a retained ferrofluid sample from the same production lot, where possible.

Record the test temperature and preconditioning procedure because viscosity and suspension behavior are temperature-dependent.

Use the same test fixture, microphone position, input level, environmental conditions, and recovery time when comparing results.

Viscosity Is Only One Selection Variable

Higher viscosity may increase damping, but it can also reduce sensitivity or alter high-frequency behavior.

Magnetic properties affect ferrofluid retention in the gap, while volatility and material compatibility influence long-term performance.

Other relevant variables may include carrier-fluid type, saturation magnetization, particle stability, evaporation characteristics, and compatibility with adhesives, coatings, and voice-coil materials.

The best formulation is the one validated for the target frequency response, damping requirement, thermal performance, and aging profile.

Specify the measurement temperature and method for viscosity. Do not compare viscosity values reported under different conditions as though they were equivalent.

When reviewing supplier data, also confirm the test method, shear condition, instrument type, and applicable tolerance.

OEM Qualification and Aging Program

• Measure baseline impedance, frequency response, distortion, and sensitivity.

• Apply controlled power, temperature, humidity, and storage cycles.

• Allow a defined recovery period before repeating measurements.

• Inspect ferrofluid distribution, magnetic-gap cleanliness, and material condition.

• Compare treated units, control units, and multiple production lots.

• Set electroacoustic, thermal, and visual-inspection acceptance limits before testing.

• Measure resonance frequency, impedance-peak characteristics, and thermal compression where relevant.

• Include sufficient sample quantities to evaluate unit-to-unit and lot-to-lot variation.

• Retain untreated reference units and ferrofluid samples for comparison.

The qualification program should also verify dispensing accuracy and contamination control on the assembly line. A stable formulation cannot compensate for uncontrolled dosage.

The production process should define and control:

• Approved ferrofluid formulation and batch traceability

• Target dosage and allowable dispensing tolerance

• Dispensing-equipment calibration

• Magnetic-gap cleanliness

• Assembly environment and contamination controls

• Required settling or conditioning time after dispensing

• Production-lot sampling and final inspection criteria

Replacement and Service Decisions

For field equipment, ferrofluid replacement should follow the loudspeaker or transducer manufacturer’s approved procedure.

Removing ferrofluid may introduce lint, solvent residue, or particles, while adding the wrong formulation or volume can change frequency response, damping, and sensitivity.

In many cases, controlled driver replacement is safer than an undocumented field-service operation.

Ferrofluid should not be added solely because a driver shows reduced output, abnormal impedance, or audible rubbing. The complete driver should first be evaluated to confirm the actual failure mechanism.

For OEM root-cause analysis, preserve removed material, document the solvent, tools, and cleaning method used, and retain the original driver components for comparison.

Record the original ferrofluid location, apparent quantity, color, contamination, and distribution before cleaning or removing material.

Frequently Asked Questions

Does loudspeaker ferrofluid dry out?

Loudspeaker ferrofluid does not normally “dry out” in the same way as water. However, carrier-fluid evaporation, migration, contamination, or chemical aging may change its quantity, distribution, and viscosity over time. Diagnosis should be based on electroacoustic measurements and physical inspection rather than appearance alone.

Higher-viscosity ferrofluid always better for tweeters?

No. A higher-viscosity ferrofluid may increase damping, but it can also reduce sensitivity or alter resonance and high-frequency response.

The viscosity, magnetic properties, and dosage must be matched to the magnetic-gap geometry and acoustic target.

How much ferrofluid should be added?

Dosage is driver-specific. Use the approved design value and controlled dispensing process.

Excess or insufficient ferrofluid can change damping, sensitivity, frequency response, and thermal behavior.

Dosage should be defined by volume or mass with an appropriate tolerance and verified using calibrated dispensing equipment.

What should an OEM provide for a ferrofluid formulation review?

Provide magnetic-gap geometry, magnetic-field information, driver materials, target electroacoustic response, power and temperature profile, dosage process, and aging criteria.

Also provide:

• Voice-coil and magnetic-gap drawings

• Current ferrofluid formulation and dosage, if available

• Target viscosity and saturation-magnetization range

• Baseline impedance, frequency-response, and distortion data

• Maximum continuous and peak power

• Operating and storage temperature range

• Expected product life and qualification requirements

• Prototype and annual production quantities

Validate the Ferrofluid and Loudspeaker Driver Together

Moretec can review loudspeaker application data and sample requirements.

Moretec can review magnetic-gap data, target electroacoustic performance, operating-temperature conditions, dosage requirements, and sample needs to recommend candidate ferrofluid formulations for OEM evaluation.

Final selection should be confirmed through controlled electroacoustic, thermal, reliability, and aging tests using production-intent loudspeaker drivers. The finished-driver performance depends on the interaction of the ferrofluid, magnetic circuit, voice coil, suspension, diaphragm, adhesives, and assembly process.
